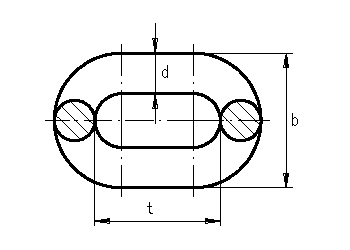

round link acc. to DIN 766
| Artikel- | nominal thickness | pitch | width | weight | load capacity | testing force | breaking load |
| no. | d | t | b | kg / m | kg | kN | kN |
| K 4×16 | 4 | 16 | 14 | 0,32 | 200 | 5 | 8 |
| K 5×18,5 | 5 | 18,5 | 17 | 0,5 | 320 | 8 | 12,5 |
| K 6×18,5 | 6 | 18,5 | 20 | 0,8 | 400 | 10 | 16 |
| K 8×24 | 8 | 24 | 26 | 1,4 | 800 | 20 | 32 |
| K 10×28 | 10 | 28 | 34 | 2,3 | 1.250 | 32 | 50 |
| K 12×36 | 12 | 36 | 40 | 3,0 | 2.125 | 42 | 70 |
| K 13×36 | 13 | 36 | 44 | 3,9 | 2.000 | 50 | 80 |
| K 16×45 | 16 | 45 | 54 | 5,8 | 3.200 | 80 | 125 |
| K 18×50 | 18 | 50 | 60 | 7,4 | 4.000 | 100 | 160 |
| K 20×56 | 20 | 56 | 67 | 9 | 5.000 | 125 | 200 |
| K 23×64 | 23 | 64 | 77 | 12 | 6.300 | 160 | 250 |
DIN 766 This standard applies for tested calibrated round steel link chains, grade 3, and defines their dimensions and mechanical properties. Material: steel, mimimum grade Ust 35-2. Design: bright, zinc-plated, hot-dip galvanized or stainless steel (AISI 301 or AISI 316). These chains are used in all fields of technology and for hand hoisting, but many not be used for motor-driven hoists and sling gear. Wire thickness: 4.0 – 23.0 mm. Load carrying capacity: 200-6.300 kg.
