escalator chains

escalator chains ST131



inner width
 Roller- Pin- Plate- Plate- Pin-   breaking weight
pitch inner link dia. dia. height thickness length   load
Chain- p b1 d1 d2 g s1/s2 l 1 Le FB q
o. mm mm mm mm mm mm mm kN kg/m
mm min. max. max. max. max. max. min. approx
 ST131  133,330 27,00  80,00 24,00  50,0 5,0  54,5 394  180,00 9,00
T131  133,330  27,00  80,00  14,63  40,0  5,0  55,0  394  180,00  6,35
 ST133  133,330  27,00  70,00  14,63  40,0  5,0  54,8  400  180,00  7,70
 ST133Z 133,330  27,00 80,00  24,00 40,5  5,0 54,5  400  180,00  8,54

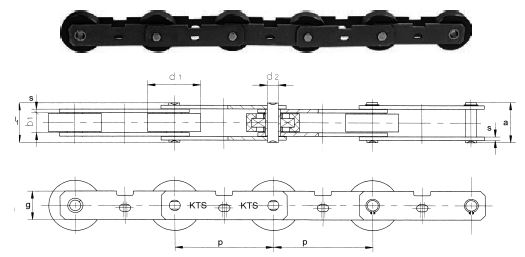

PT131 escalator chains





inner width Roller- Pin- Plate- Plate Pin- breaking weight
pitch inner link dia. dia. height thickness length load
Ketten- p b1 d1 d2 g s a FB q
no. mm mm mm mm mm mm kN kg/m
mm min. max. max. max. max. max. min. approx
 PT131 131,330 27,00 70,00 14,63 40,0 5,0 55,0 180,00 5,98
