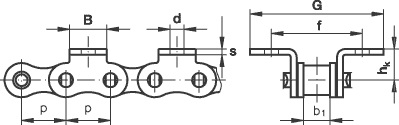

Roller chains with K1 attachment (narrow design with one hole)

bent plate fitted one side

on every outer link (=2xp)

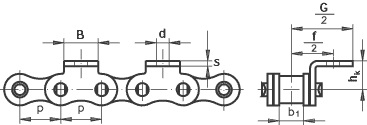

roller chain with bent attachment

bent plate fitted both sides

on every outer link (=2xp)



roller chain with attachment K1.2



pitch inner width bore middle middle middle middle of pin attchment width total width
Ø to to to to
middle middle middle of chain top of bent plate
Kette p b1 d f f f/2 hk B G G/2
min. H14 +/-0,5 +/- 1,0 +/- 0,4 +/- 1,0 +/- 1,0
K06B-1-K1 9,525 5,72 3,5 19,05 9,525 6,5 8,00 26,52 13,26
K08B-1-K1 12,700 7,75 4,5 25,4 12,7 8,9 9,50 35,20 17,60
K10B-1-K1 15,875 9,65 5,5 31,8 15,9 10,3 14,30 45,80 22,90
K12B-1-K1 19,050 11,68 6,6 38,1 19,05 13,5 16,00 52,40 26,20
K16B-1-K1 25,400 17,02 6,6 50,8 25,4 15,9 19,10 72,60 36,30
K20B-1-K1 31,750 19,56 9,0 63,5 31,75 19,8 35,00 100 50
K24B-1-K1 38,100 25,40 11,0 76,2 38,1 26,7 38,00 128 64
K28B-1-K1 44,450 30,99 13,5 88,9 44,45 28,6 45,00 156 78
K32B-1-K1 50,800 30,99 13,5 101,6 50,80 31,8 50,00 154 77
